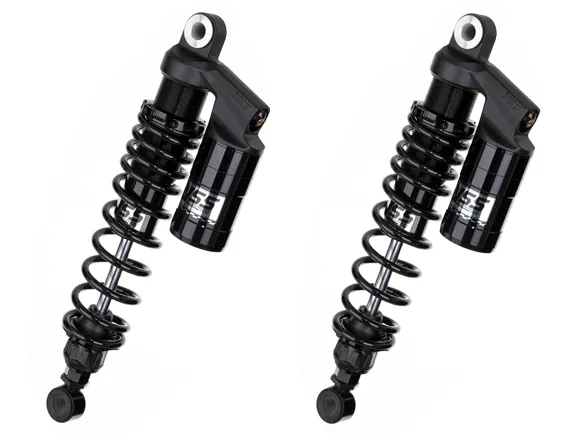

TRIUMPH SCRAMBLER 900 2006-2015 YSS SHOCK ABSORBER

RG362-360TRCL-22-888 (B)

Technical data
YEAR:2008-2015
PRODUCT GROUP:Topline
SHOCK TYPE:Rear double shock absorber
PRODUCT TYPE:Shock absorbers with a subtank attached to the shock absorber. In the sub-tank there is a gas chamber to increase the pressure to work with oil. Can adjust the set
ABE:-
LENGTH:355-365 (MM.)
TOP:14×22 (MM.)
BOTTOM:14×22 (MM.)
SPRING:46-17-25-220 (MM.)
PISTON SIZE:36 (MM.)
SHAFT SIZE:12 (MM.)

COMPRESSION ADJUSTABLE

Adjust the suspension of the shock to 30 levels for controlling the stroke of the shock absorber collapse. As fast or slow as needed

THREAD SPRING PRELOAD

Adjust the stiffness of the tapered spring. It will be threaded on the shock absorber cylinder. Then put on the ring-shaped adjuster turn it along the thread until the spring is pressed. And then tighten the nut together to loosen Which is a small nut rotates the screw directly from the side to prevent loosening the ring.

REBOUND ADJUSTABLE

To help control the recovery of the shock absorber. As fast or as slow as needed Designed with a knob to control the oil quantity through the Free Bleed axis and the Rebound knob designed to feel the adjustment when adjusting the dial. Which can be adjusted in 30 levels

LENGTH ADJUSTABLE

Adjust the length of the shock absorber more. It can be adjusted in two ways: an increase of 10 mm and a length adjustment increase or decrease 5 mm by loosening the lock ring and turning the shock handle in or out as needed and tightening the lock ring as before.
